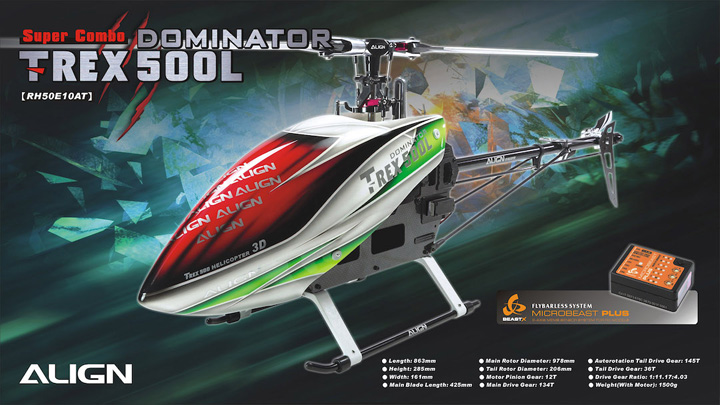

RH50E10A T-REX 500L Dominator Super Combo
The internationally popular T-REX 500 has long been a trend setting helicopter, every enthusiasts probably has owned at least one. It is the ideal model for beginners as well as experts practicing advanced maneuvers. Now the T-Rex 500 evolution continues, as Align drops another shocker into the market; with even more innovative designed incorporated, the brand new T-REX 500L Dominator.
T-REX 500L firstly utilizes composite material integration technology on carbon side frame plates, also adding battery mounting rails and top mounted motor base design make assembly easy and protectable. Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts; he FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.
T-Rex 500L features high stability, excellent gust resistance, superior control feel, and being 500 is just the right size/price, it is the ultimate choice for enthusiasts.
The 500FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.
Top mounted motor base bringing the motor's center of gravity closer to rotating disc, improving 3D agility.
Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700L, for simplified servo installation and clean aesthetic.
Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.
Carbon side frame plates utilized composite material integration technology, adding battery mounting rails.The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing. Frame reinforcement plates were added to effectively increase frame rigidity and increase anti-torsion ability.
The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.
High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.
Standard equipment
● Microbeast PLUS Flybarless System X 1 set
● RCE-BL70G Brushless ESC X 1
● 500MX Brushless Motor(1600KV) X 1
● DS530 Digital servo X 3
● DS535 Digital servo X 1
Specification
● Length: 863mm
● Height: 285mm
● Main Blade Length: 425mm
● Main Rotor Diameter: 978mm
● Tail Rotor Diameter: 206mm
● Motor Drive Gear:12T
● Main Drive Gear:134T
● Autorotation Tail Drive Gear: 145T
● Tail Drive Gear: 36T
● Drive Gear Ratio: 11.17:1:4.03
● Weight(With Motor): 1210g
Accessories
● T-REX 500L DOMINATOR Set X1
● Microbeast PLUS Flybarless System X1 set
● 425 Carbon Fiber Blades X1
● 73 Tail Rotor Blade X1
● 500MX Brushless Motor(1600KV) X1
● DS530 Digital servo X3
● DS535 Digital servo X1
● RCE-BL70G Brushless ESC X1
Radio transmitter and electronic equipment required for assembly:
● Transmitter(7-channel or more, helicopter system)
● Receiver(7-channel or more)
● 6S Li-Po 2600 ~ 3300mAh x 1 (3300mAh suggestion)
● Digital Pitch Gauge |
